Panel board installation is a crucial task in ensuring the safe and efficient distribution of electricity throughout a building. This process requires careful planning and adherence to safety standards. Whether you’re dealing with a main distribution panel or an electrical distribution panel, understanding the steps involved and the tools required is essential. This guide will walk you through the necessary steps for a successful installation, ensuring your electrical system is both safe and functional.
What You Need to Know Before Installation
Before beginning any electrical work, it’s important to analyze your electrical needs. This involves determining the size and scope of your system, which will dictate the type of panel board and the number of circuit breakers required. Industry norms require a specific number of residual-current devices based on the surface area of your system. For example, for a surface area of less than or equal to 35 square meters, you should install at least two individual circuit breakers.
In addition to choosing the appropriate panel board, you will need various tools and materials, including:
- Electrical panel board
- Main and individual circuit breakers
- Screws and wall plugs
- Connector strips
- Conductors
- Pencil, spirit level, tape measure
- Wire cutter, wire stripper
- Screwdrivers, drill, hammer
Step-by-Step Installation Guide
1. Prepare the Installation Area
Start by turning off the electrical supply at the mains and the subscriber’s circuit breaker to ensure safety. Next, decide on the installation location. The panel board must be installed at a height of 1 to 1.8 meters above the floor and must be positioned close to the branch circuit breaker. Remember that installing electrical panels in bathrooms is prohibited due to safety regulations.
Take the cover off the electrical panel and place the base against the wall. Mark the points where the screws will go, then drill the corresponding holes and insert the wall plugs. Finally, secure the panel board to the wall using screws.
2. Install the Connection Modules

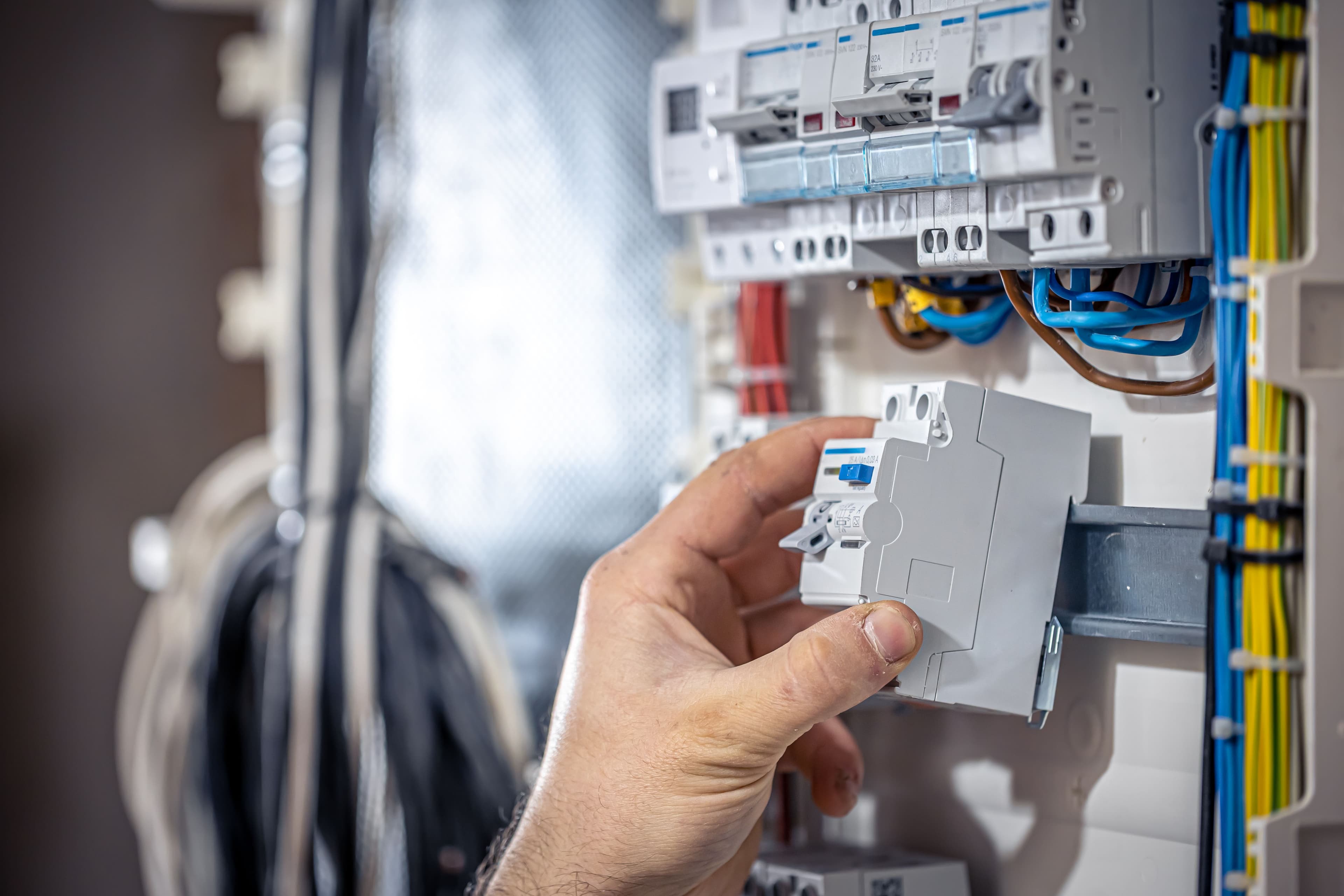

The next step involves installing the circuit breakers. Attach the individual circuit breaker first, followed by the other individual circuit breakers in order of decreasing load. Connector strips are used to link the modules, and they must be adjusted by cutting them to size with a wire cutter.
Begin by unscrewing the connection terminals at the top of the circuit breakers. Place the connector strip on the neutral terminals (marked ‘N’ and located high on the left) and tighten the screws. Repeat this process for the face terminals on the right side of each circuit breaker.
3. Connect the Circuits
Now it’s time to connect the circuits. Start with the power supply cables. Strip the plastic covering from the electrical wires and connect the neutral and face conductors to the terminals, with the phase (red) on the right and the neutral (blue) on the left. After tightening the screws, connect each row to the power supply.
The next step is to connect the various electrical circuit conductors at the bottom of each corresponding circuit breaker. Place the stripped conductor of the neutral wire into the terminal end of the circuit breaker up to the neutral of the supply terminal, then tighten the screws. Repeat this process for the face conductor and each circuit.
4. Install the Grounding
Proper grounding is vital for the safety of your electrical system. Connect the ground input to the green terminal block at the bottom of the panel. Place it into one of the terminals with a larger diameter and tighten the screws. Do the same for the green and yellow protection conductors of the various circuits. Ensure all connections are secure by tightening the screws.
5. Final Checks and Activation
Once all connections are complete, reinstall the cover of the panel and tighten the screws at all four corners. Close any empty spaces at the end of each row with clip-on covers. It’s also a good practice to label each module to ensure easy identification in the future. Finally, turn the general supply back on, followed by the individual circuit breakers.
Conclusion
Installing a panel board, whether it’s a main distribution panel or an electrical distribution panel, is a task that requires precision and attention to detail. By following the steps outlined in this guide, you can ensure a safe and efficient installation that meets industry standards. Remember to always prioritize safety by turning off the power supply before beginning any work and double-checking all connections before activating the system.
FAQs
What safety precautions should be taken during panel board installation?
During panel board installation, it’s crucial to turn off the main power supply, use insulated tools, wear protective gear, and ensure the workspace is dry and well-lit to avoid accidents.
How do I choose the right panel board for my needs?
Selecting the right panel board depends on factors such as the type of electrical system, the total load requirement, the number of circuits needed, and compliance with local electrical codes.
Can I install a panel board myself, or should I hire a professional?
While it’s possible to install a panel board yourself if you have electrical experience, it’s recommended to hire a licensed electrician to ensure the installation meets safety standards and local regulations.
What are the common signs that a panel board needs to be replaced?
Common signs include frequent tripping of circuit breakers, flickering lights, a burning smell, corrosion, or physical damage to the panel board, indicating it may need to be replaced.
How often should panel boards be inspected for maintenance?
Panel boards should be inspected at least once a year by a qualified electrician to check for any wear and tear, loose connections, or signs of electrical issues that could pose a safety hazard.
